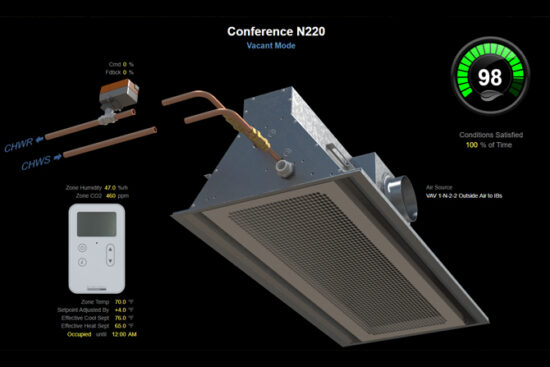

The Automated Logic line of Zone Controllers are integrals component of the WebCTRL® building automation system. These fully programmable, native BACnet Advanced Application Controller (AAC) designed for controlling a single zone in a building. These controllers are well suited for heat pump, chilled beam, unit ventilator and other packaged HVAC applications. They communicate on an EIA-485 LAN using BACnet MS/TP or BACnet over ARCNET communications and connects seamlessly to the WebCTRL® building automation system. Automated logic zone controllers have plenty of memory for schedules, alarms, trends and Fault Detection and Diagnostics (FDD)
The ZN551 controllers connect to the Building Automation System (BAS) network using BACnet over ARCNET 156 kbps or MS/TP. The ZN551 supports a line of ALC Wireless and ZS sensors using its Rnet port.
5 Digital Outputs – 5 Universal Inputs – 1 Analog Output
The ZN253 controllers connect to the Building Automation System (BAS) network using BACnet over ARCNET 156 kbps or MS/TP. The ZN253 supports a line of ALC Wireless and ZS sensors using its Rnet port.
2 Digital Outputs – 5 Universal Inputs – 3 Analog Outputs
The ZN220 controller is used for simple zone control applications such as fan coil units or for miscellaneous control points such as room lighting or toilet exhaust fans.The ZN220 controllers connect to the Building Automation System (BAS) network using BACnet over ARCNET 156 kbps or MS/TP. The ZN220 supports a line of ALC Wireless and ZS sensors using its Rnet port.
2 Digital Outputs – 2 Universal Inputs – 0 Analog Outputs
