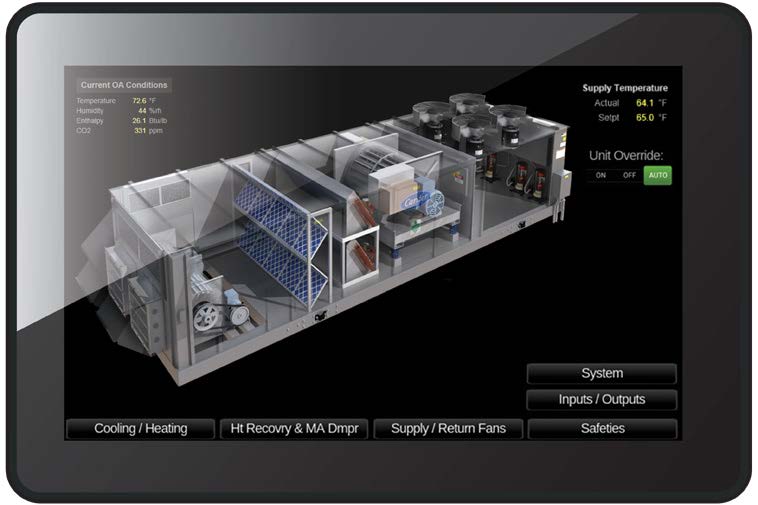

Automated Logic Equipment Touch EQT3 Displays provide building operators and technicians with convenient visibility and control over individual HVAC equipment and building zones. Available in three display sizes, these graphical touchscreen interfaces connect to Automated Logic controllers to simplify equipment management, monitoring, and adjustment.
Featuring illuminated, capacitive multi-touch displays in 7-inch, 10.1-inch, and 15.6-inch sizes, the EQT3 series combines an industrial-grade design with an intuitive, customizable user interface. Users can view equipment operating conditions, adjust control settings, access schedules and trends, review alarms, and initiate timed local overrides.
The displays support custom equipment graphics, animations, international languages, and pre-designed system screens. Integrated trending tools allow users to zoom and navigate historical data using touchscreen gestures. Multi-level password protection helps secure access, while a built-in PDF viewer and USB screen capture functionality provide additional convenience for technicians.
EQT3 displays connect through the Rnet sensor network or a service port using Ethernet or USB, depending on the controller and connection requirements. Designed for integration with Automated Logic's WebCTRL building automation system, the EQT3 series provides a practical interface for equipment operation, configuration, and diagnostics.
With a rugged, IP65-rated front panel, flexible mounting options, and support for demanding indoor environments, Equipment Touch EQT3 Displays are suitable for mechanical rooms, control rooms, and occupied building spaces.
Key Features & Benefits
Features:
- • Available in three display sizes: 7-inch, 10.1-inch, and 15.6-inch.
- • Illuminated color TFT touchscreen with capacitive multi-touch technology.
- • Fully customizable touchscreen interface for equipment navigation and control.
- • Rugged, industrial-grade front display suitable for mechanical rooms and control room installations.
- • Rnet connection for communication with the Rnet sensor network.
- • USB and Ethernet service connections, depending on controller compatibility.
- • Pre-designed system screens for schedules, trends, alarms, and equipment configuration.
- • Custom graphics and animations for equipment visualization and operating status.
- • Supports international languages.
- • Screen captures can be saved to a USB flash drive.
- • Built-in PDF viewer.
- • Multi-level password protection.
- • Touchscreen trending supports pinch-to-zoom and swipe navigation.
- • Supports timed local overrides.
- • EQT3-7 display: 7-inch screen, 1024 × 600 resolution, 320 cd/m² typical brightness, and 1000:1 typical contrast ratio.
- • EQT3-10 display: 10.1-inch screen, 1280 × 800 resolution, 350 cd/m² typical brightness, and 800:1 typical contrast ratio.
- • EQT3-15 display: 15.6-inch screen, 1366 × 768 resolution, 400 cd/m² typical brightness, and 500:1 typical contrast ratio.
- • Power supply: 24 VDC ±15%, 1 A.
- • Communication input: EIA-485 serial connection for Rnet at 115 kbps.
- • USB port supports upgrades, file copying, screen captures, file transfers, and service connections to OptiFlex controllers.
- • USB OTG port for factory programming and firmware upgrades.
- • RJ-45 Ethernet connection for the service port on OptiPoint controllers.
- • Quad-core 2.0 GHz processor.
- • System memory: 3 GB LPDDR4 RAM for 7-inch and 10.1-inch models; 4 GB LPDDR4 RAM for the 15.6-inch model.
- • Storage: 32 GB onboard eMMC flash memory for program code and screen files.
- • Operating temperature: -4°F to 122°F (-20°C to 50°C).
- • Operating humidity: 10–90% RH, non-condensing.
- • Front-panel protection rating: IP65; rear protection rating: IP20.
- • Storage temperature: -13°F to 158°F (-25°C to 70°C).
- • Wall or panel mounting for 7-inch and 10.1-inch models within building interiors.
- • Real-time clock maintains time for at least three days during a power failure.
- • Compliance: CE Class B, FCC Class B, CAN/CSA C22.2 No. 62368-1-14, ANSI/UL 62368-1, 2nd Edition.
- • Vibration tested to EN 60068-2-6 and EN 60068-2-64.
- • Optional wall mounting kits: EQT3-7-MOUNT and EQT3-10-MOUNT.
Benefits:
- • Convenient Equipment Control: Provides operators and technicians with direct touchscreen access to HVAC equipment settings, operating modes, and configuration.
- • Improved Visibility: Custom graphics and animations help users visualize equipment status and operating conditions.
- • Simplified Operation: Intuitive touchscreen navigation makes it easy to access schedules, trends, alarms, and control settings.
- • Flexible Installation: Three display sizes accommodate different installation locations and viewing requirements.
- • Efficient Troubleshooting: Historical trending, alarm access, and equipment status displays help technicians investigate operating issues.
- • Enhanced Security: Multi-level password protection helps restrict access to authorized users.
- • Convenient Technician Tools: USB screen capture, file transfers, service connections, and a built-in PDF viewer support field service activities.
- • Improved Data Analysis: Touchscreen trend navigation, pinch-to-zoom, and swipe gestures make it easier to examine equipment performance over time.
- • Durable Design: The industrial-grade front panel and IP65 front protection rating support use in demanding indoor environments.
- • Building Automation Integration: Connections to compatible Automated Logic controllers and the WebCTRL platform support coordinated equipment monitoring and management.
- • Customizable User Experience: Configurable screens, graphics, animations, and international language support accommodate different applications and users.
